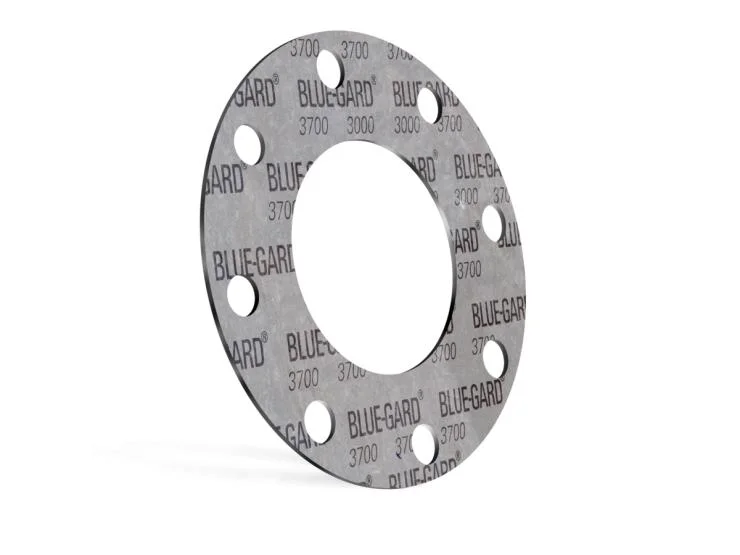

Style 3700 gasket sheet provides excellent sealability and drastically lowered emission levels. Constructed from aramid fibers and an EPDM binder style 3700 serves in water, inert gases, and saturated steam applications (saturated steam under 150psi).

Tensile Strength (psi):2500

Temperature MAX: 400 degrees F continuous, 700 degrees F maximum

Pressure MAX: 1200 psi

P x T Max: 1/32", 1/16" 350,000, 1/8" 250,000

Density: 100 lbs/cubic ft

Color: Light grey, branded

Weight (SF, 1/8”): .972 lbs

ASTM-D-F104 Call Out: F712902A9B4E99K5L104M9
